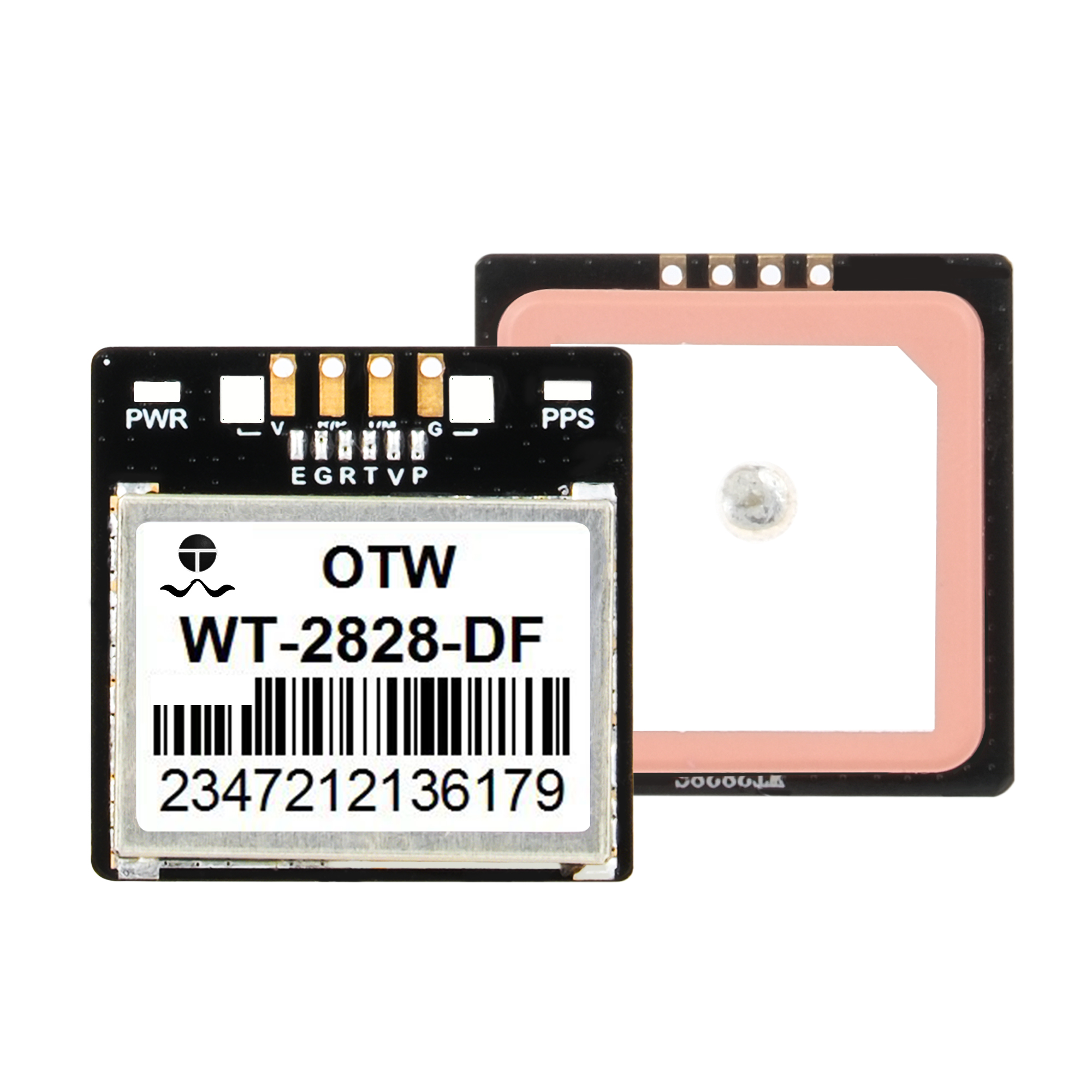

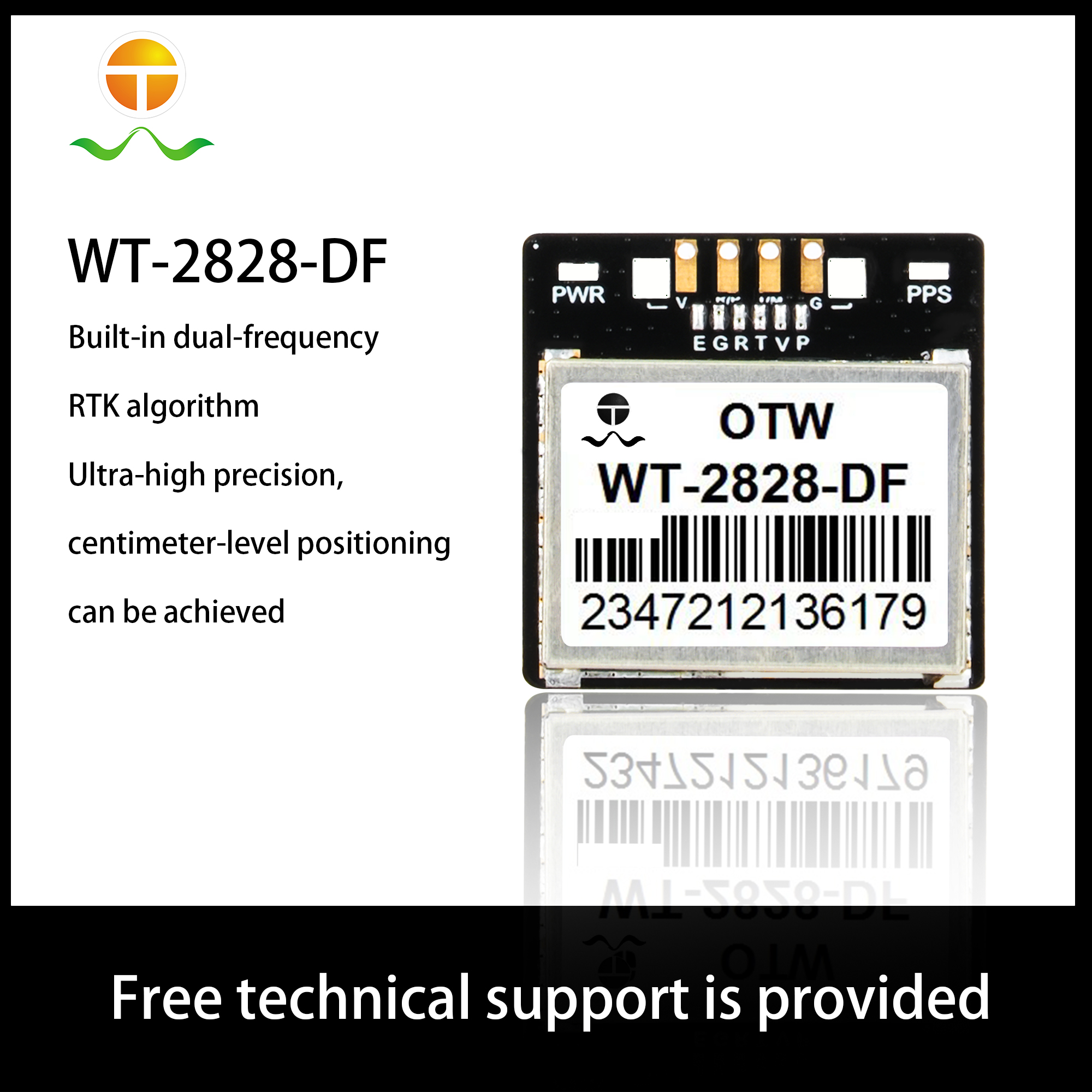

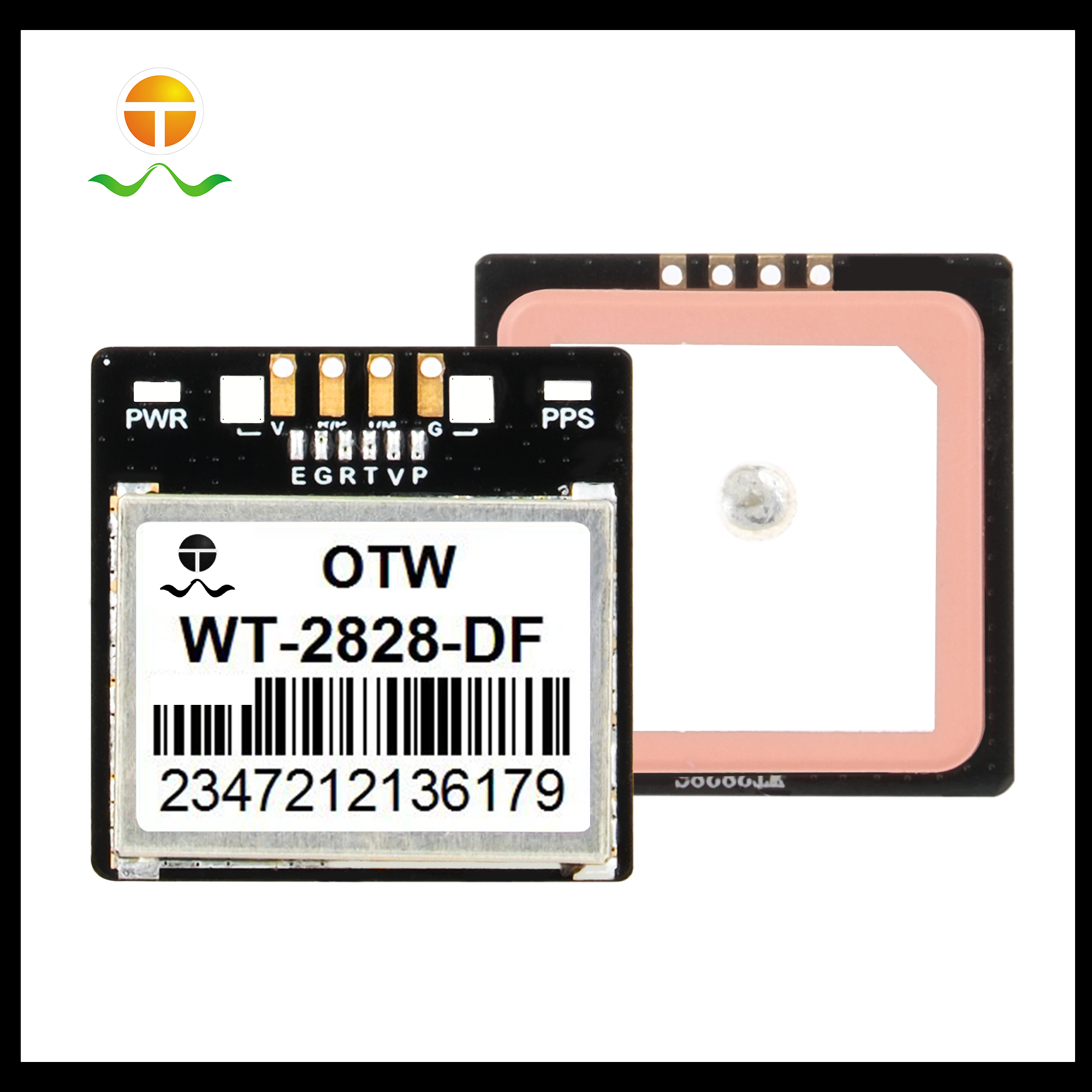

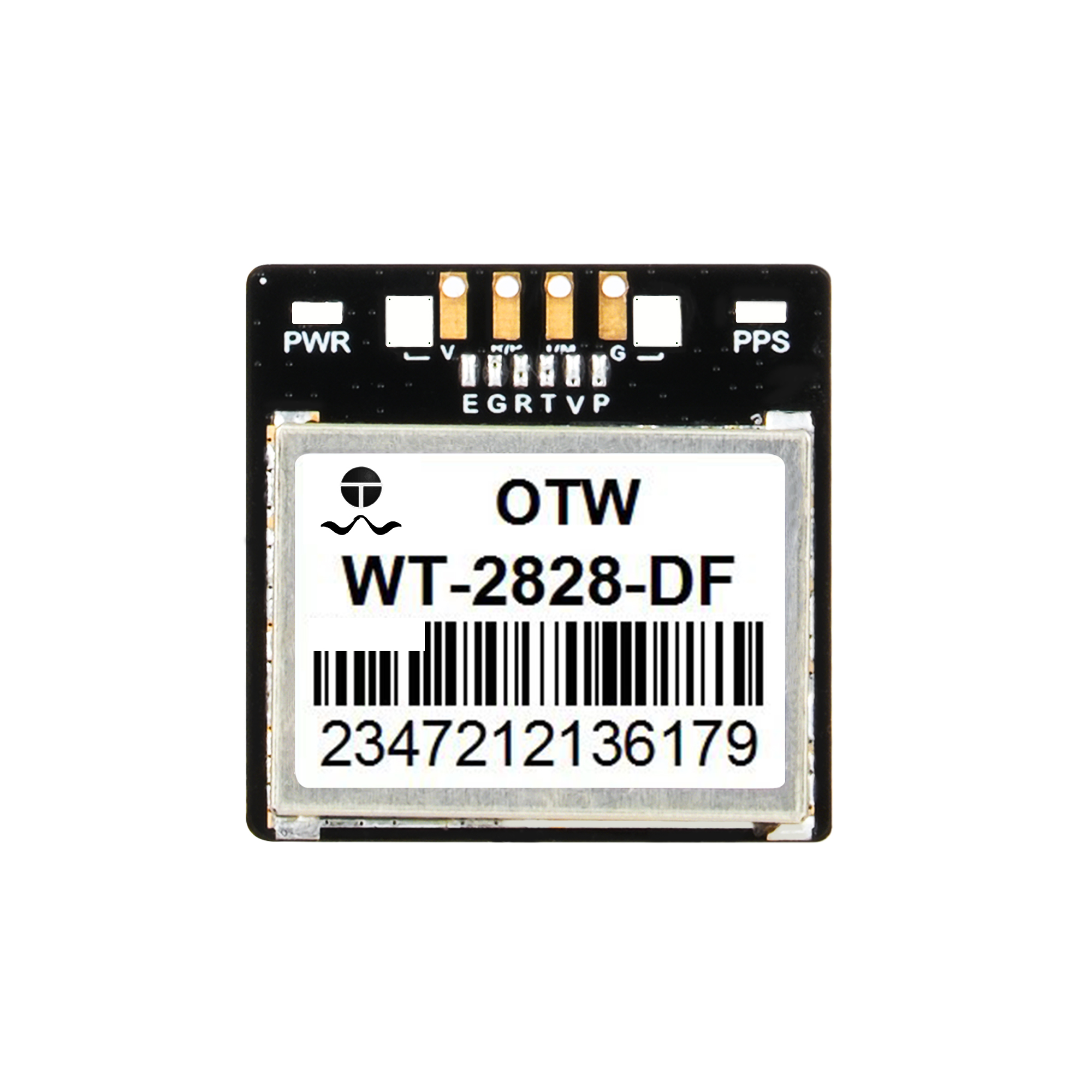

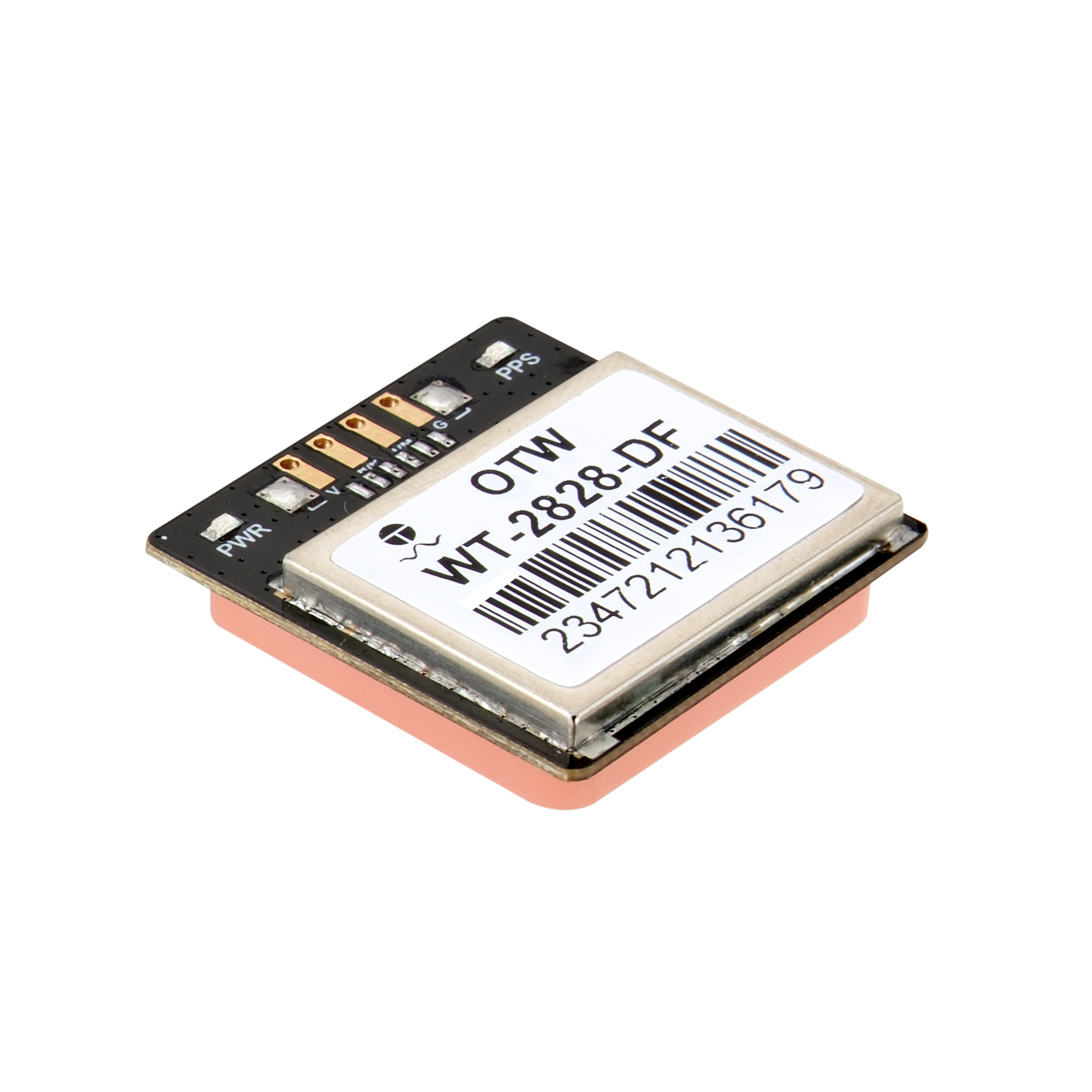

Compact Built In G-Mouse WT-2828-DF

WT-2828-DF

Scope of application:

Multi-system, can synchronously receive GPS (L1C/A/L5) BDS (B1I/B2a/B1C) GALILEO (E1/E5a) GLONASS (L1) four-system dual-frequency
Fast positioning can be achieved in a sheltered environmen
Antenna positioning integrated convenient design and installation

Module performance
Model number	WT-2828-DF
Receiver type	GPS/QZSS L1C/A & L5, BDS B1I/B1C & B2a, GAL E1 & E5a, GLONASS L1
algorithm	Integrated dual frequency algorithm
agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	128
Sensitivity	Tracking :-167 dBm Capture :-158 dBm Cold start :-148 dBm Hot start :-158 dBm
Cold start	Average 28 seconds
Hot start	Average 1 seconds
Accuracy	< Level 2m+1ppm CEP50
Max Height	18000 m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration	0.25-10 Hz
Positioning mode	A-GNSS，Dual frequency
Port	UART/TTL/R232
Type	1.25mm 6pins connector

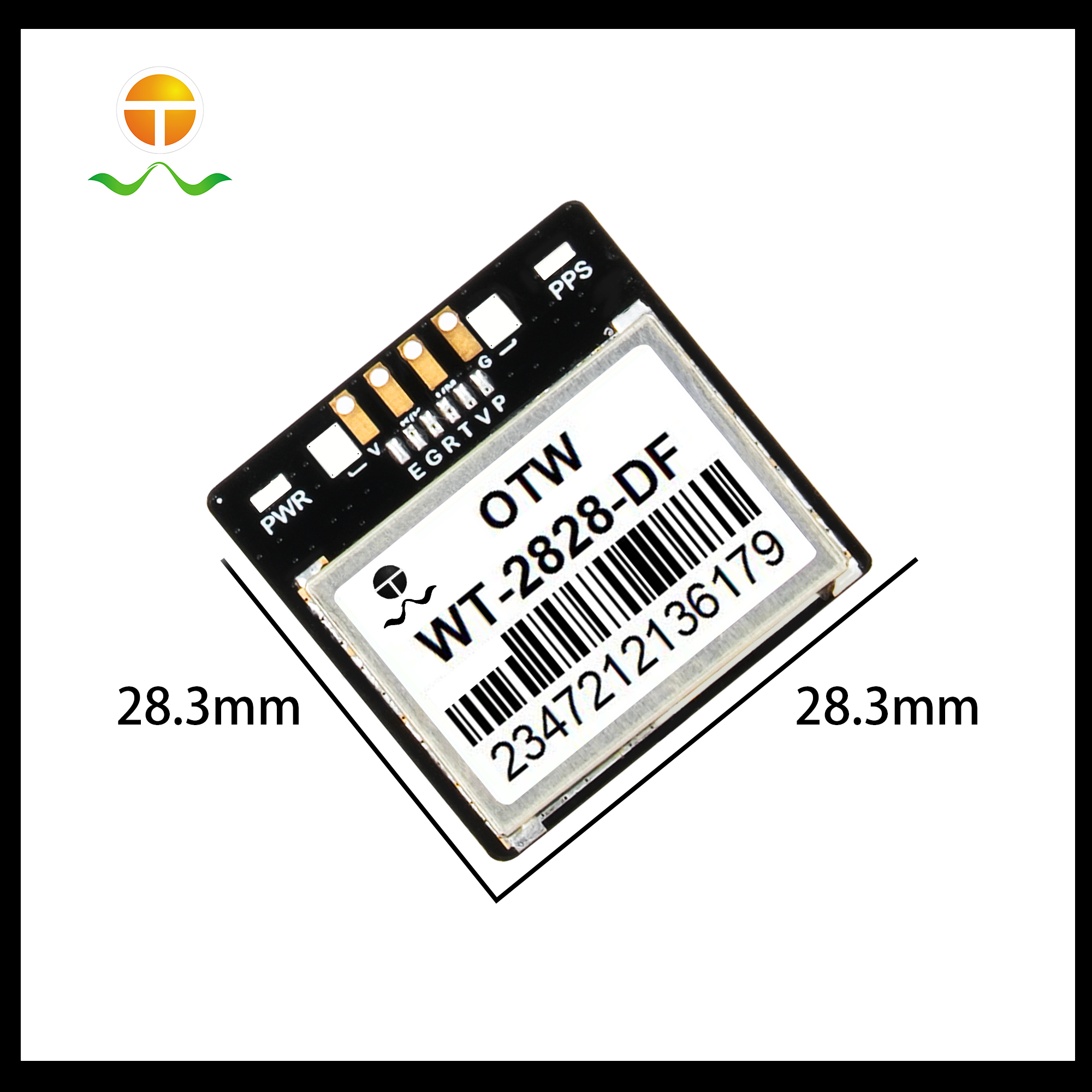

Size	28.3mm * 28.3mm *7.5mm (+/- 0.5mm)
Voltage	1.8~3.3V
Power Consume	Running mode: 103mW@1.8V, standby mode: < 20μW
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
