Product features:

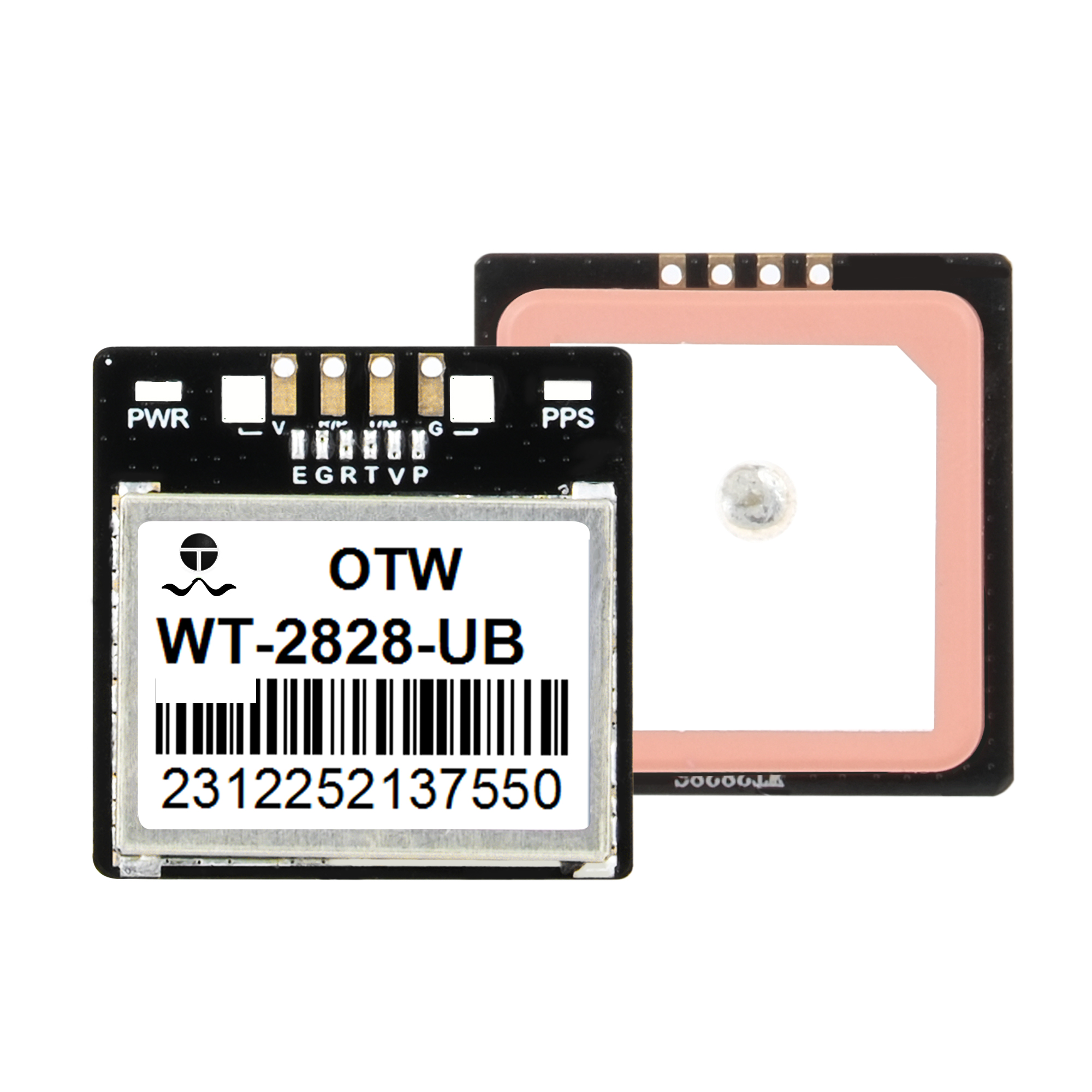

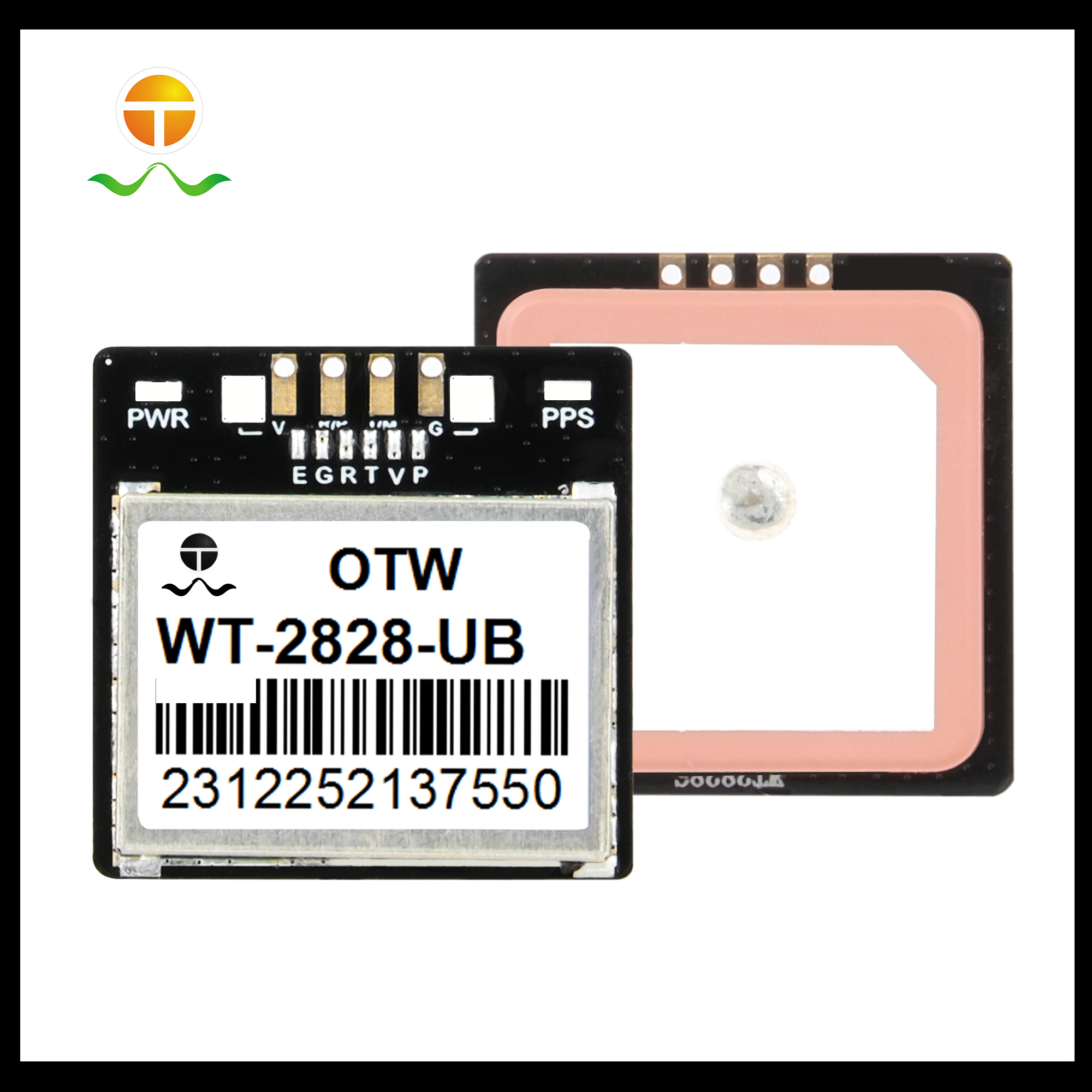

- Positioning module and antenna integrated

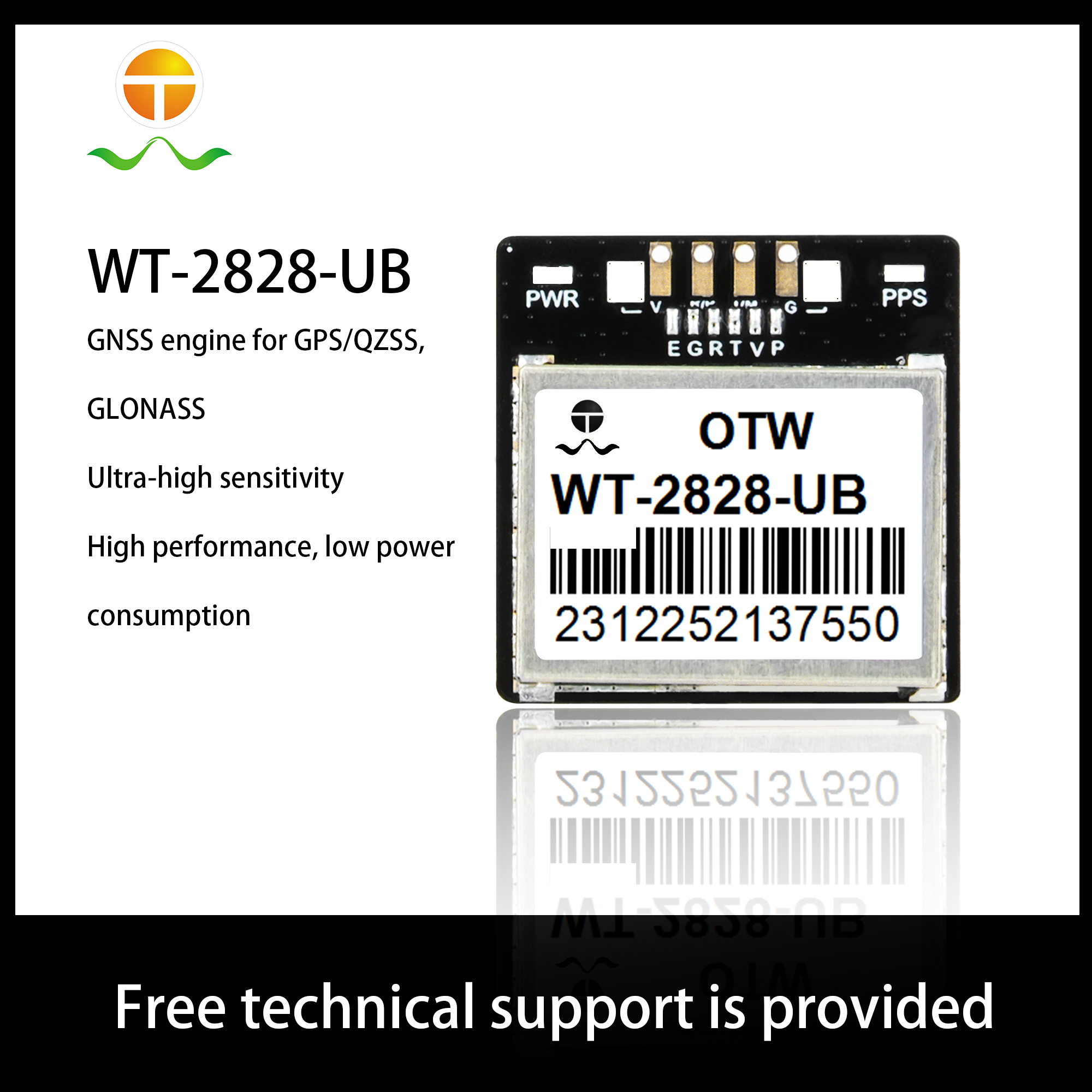

- GNSS engine for GPS/QZSS, GLONASS
- Ultra-high sensitivity
- Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
- High performance, low power consumption
- Exceptional jamming immunity
| MODULE PERFORMANCE | |
|---|---|

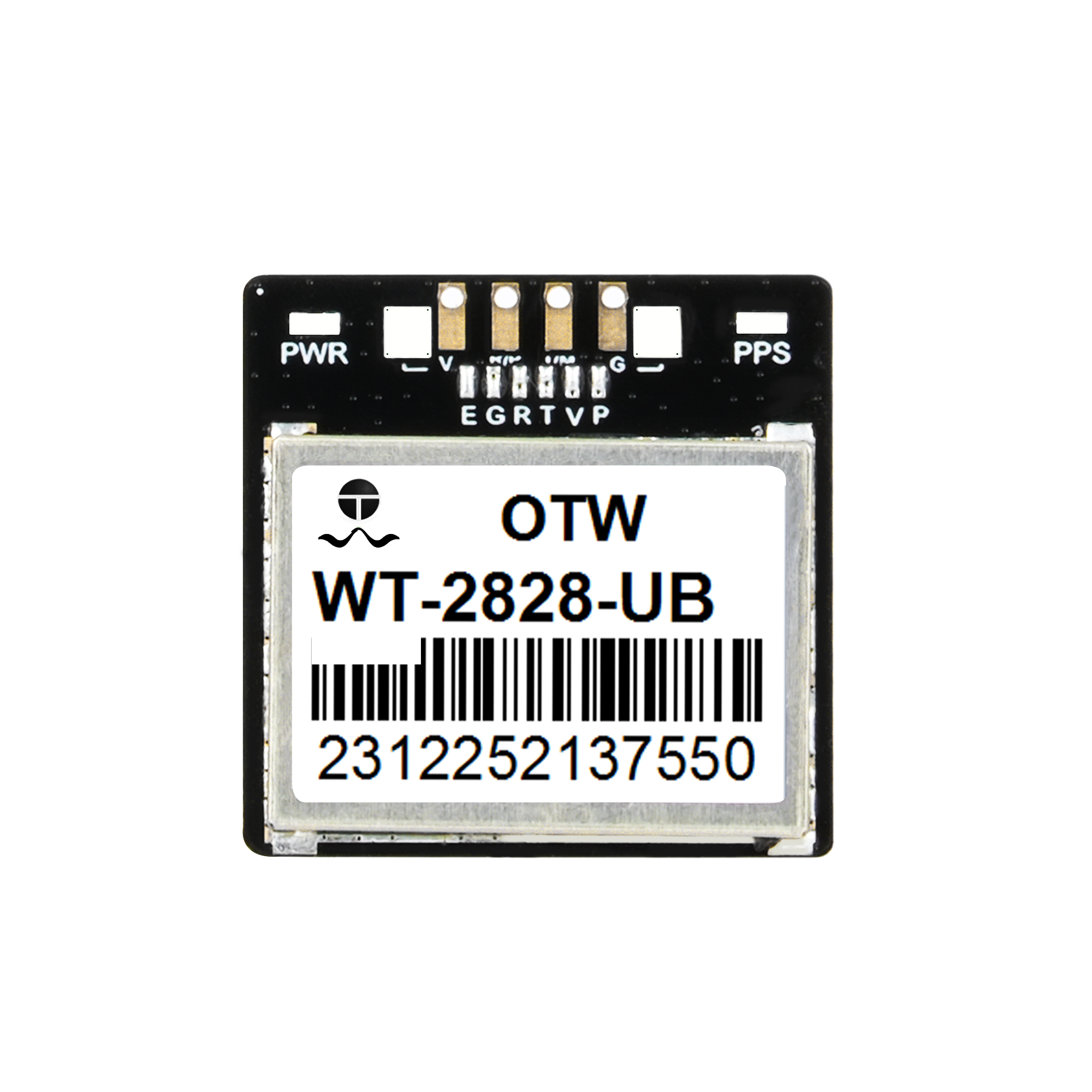

| Module | WT-2828-UB |
| Receiver type | GPS/QZSS L1 GLONASS L1 |
| Agreement | NMEA-0183 or custom protocol |
| Channel | 56 |
| Available baud rate | 4800bps~921600bps(default 38400bps) |
| Sensitivity | Tracking: -162 dBm, catch -160 dBm, Cold start -168 dBm |
| Cold start | Average 29 seconds |
| Hot start | Average 1 seconds |
| Accuracy | 2.5m, Velocity: 0.1 m/s, Timepulse signal: RMS 30 ns |
| Max Height | 18000 M |
| Max Speed | 500 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1-18 Hz |
| Positioning mode | A-GNSS |
| Communication type | UART/TTL/R232/USB |
| Type | 1.25mm 6pins connector |

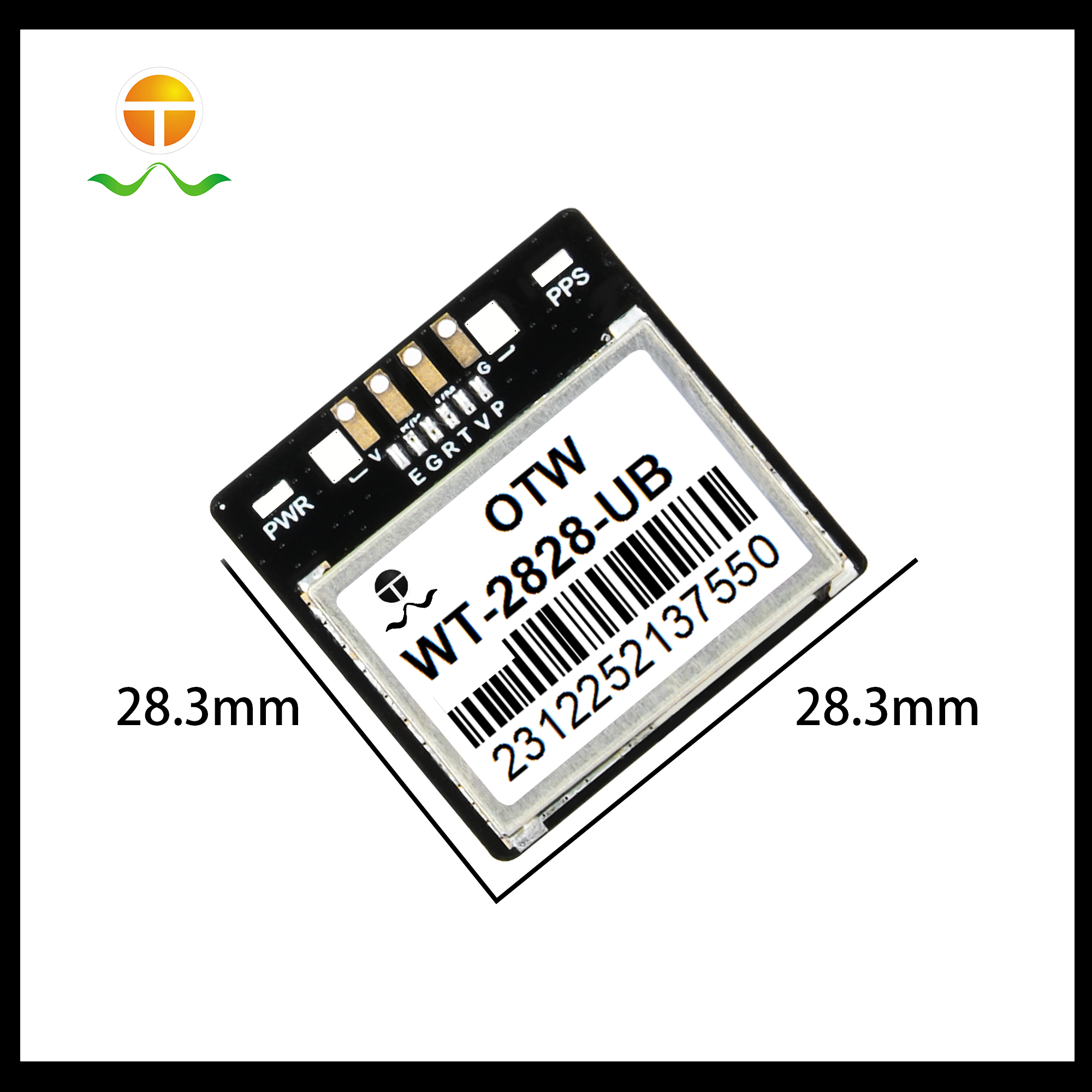

| Size | 28.3mm * 28.3mm * 7.5mm (+/- 0.5mm) |
| Voltage | 3V~5V |
| Power Consume | 35mA@3.3V |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
