High Precision Built In G-Mouse WT-26-6P

WT-26-6P

Scope of application:

Tracking products such as personal positioning and vehicle navigation positioning
Drones, law enforcement equipment
Pocket computers and other portable navigation devices
Track recording and GNSS data point calibration
Measuring equipment
Agricultural positioning and other products
Timing equipment
Automotive Internet of Things

Positioning module and antenna integrated
Can receive 3 GNSS synchronously (GPS/BDS/GLN/GAL)
Ultra-high sensitivity
Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
High performance, low power consumption
Support for all satellite augmentation systems
The operating temperature range of automotive grade chips is -40°C to +105°C

Module Performance
Model	WT-26-6P
Reception Type	GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF, BeiDou B11,Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Protocol	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	92
Sensitivity	Tracking & nav. -167 dBm, Reacquisition -160 dBm, Cold start -148 dBm, Hot start -159 dBm
Cold start	Average 24 seconds
Hot start	Average 2 seconds
Accuracy	Horizontal accuracy 1.5m (+0.5m)CEP
Max Height	18000 m
Max Speed	500 m/s
Max Acceleration	≤ 4G
Regeneration frequency	1Hz-25Hz
Positioning mode	A-GNSS
Communication type	UART/R232/TTL level

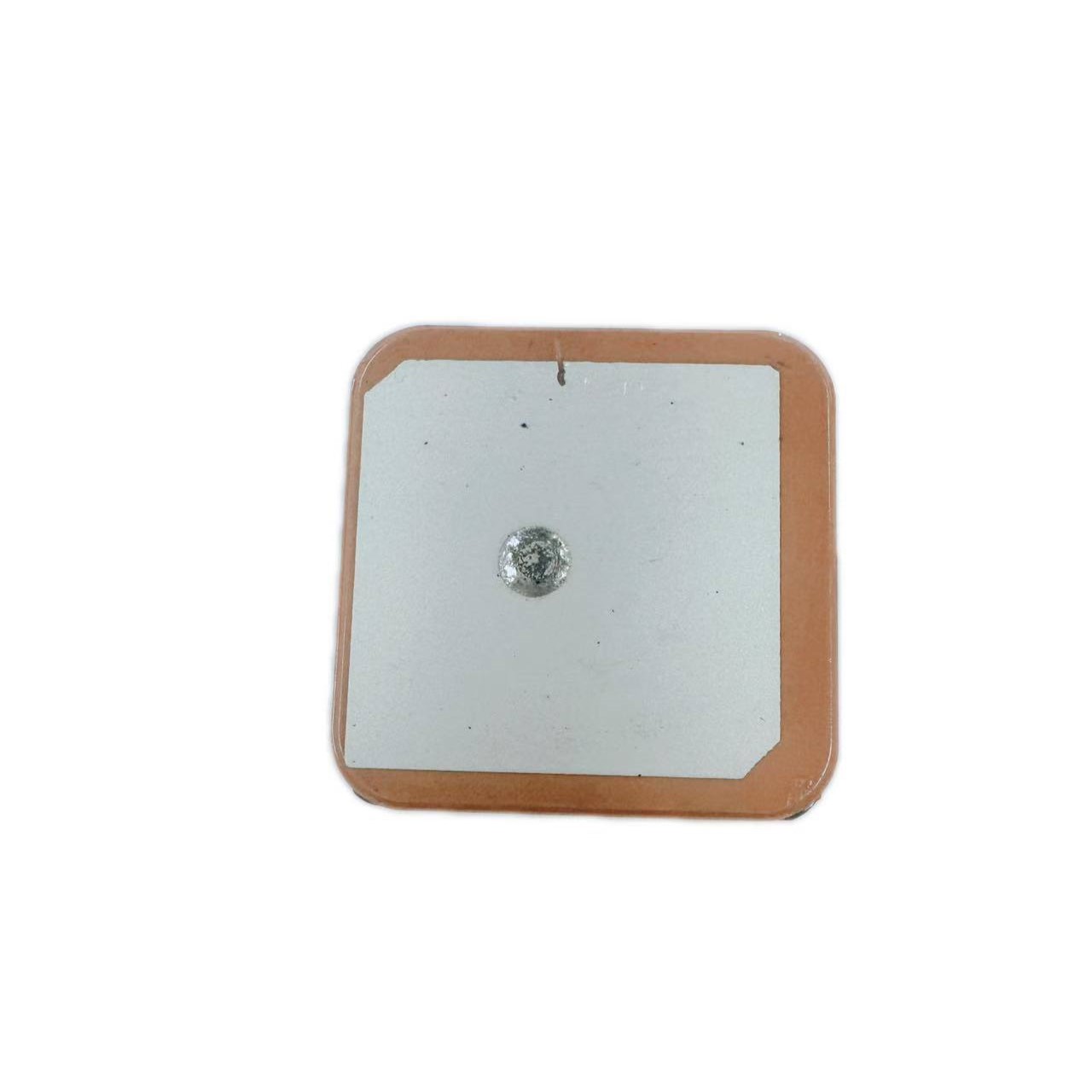

Antenna	Built-in ceramic antenna
Connector type	Molex connector
Type	6Pin
Size	38mm49mm16mm (+/-0.5mm)
Wire length	3m (customizable)
Fixed mode	3M adhesive or magnet(default 3M adhesive)
Voltage	3V~5V
Power Consume	25mA@3.3V
Humidity range	5% to 95% non-condensing
Working Temperature	-40°C to 85°C
Storage Temperature	-40°C to 85°C
