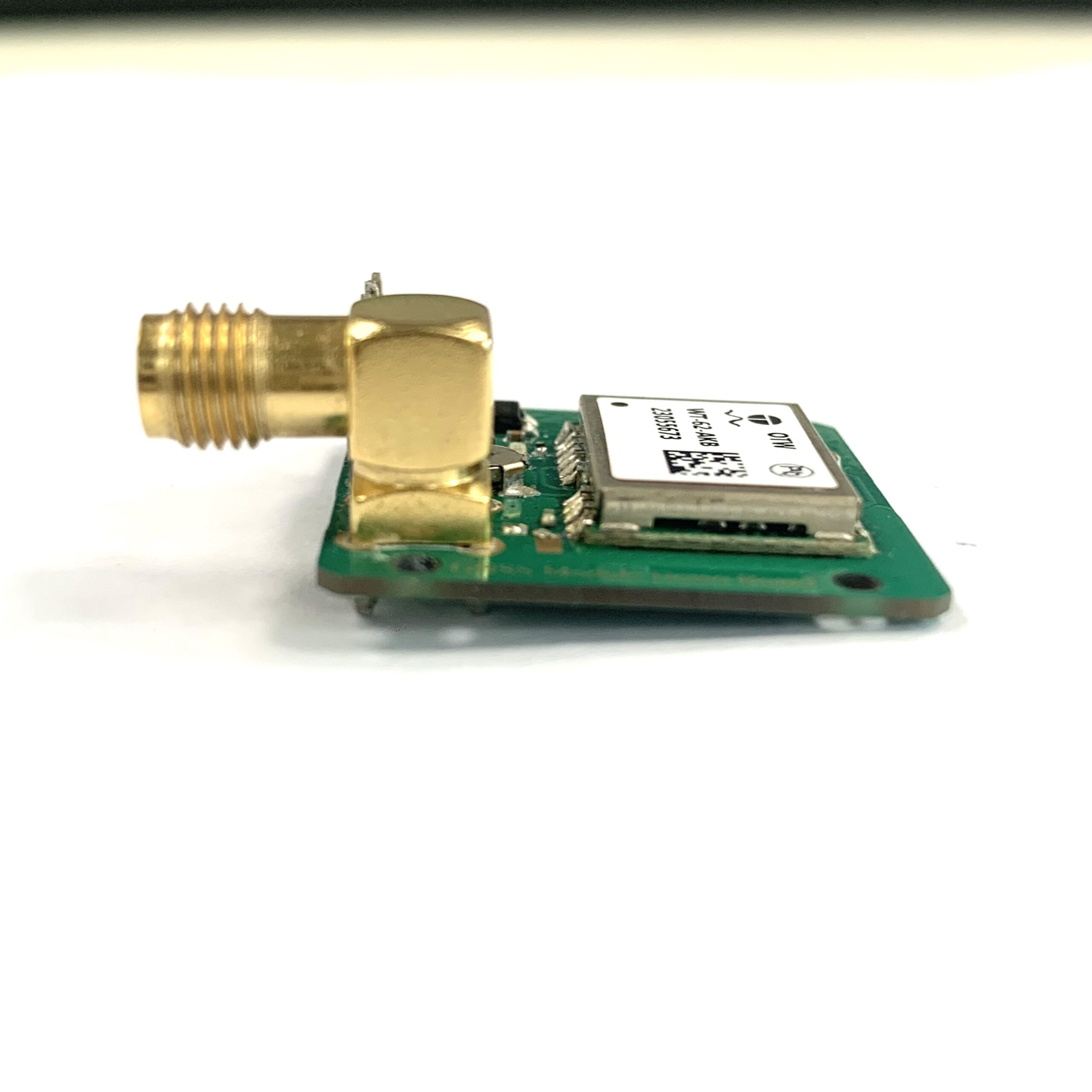

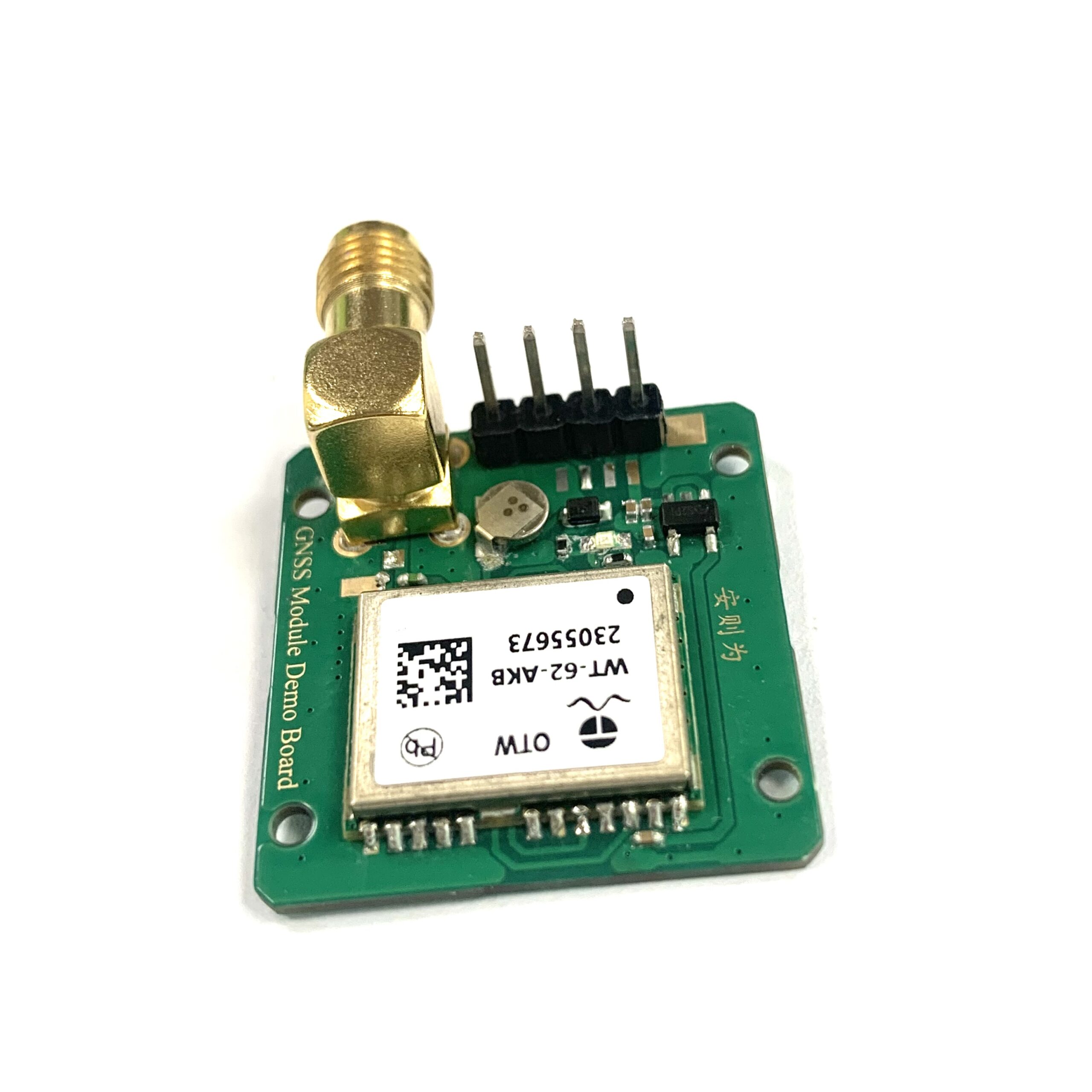

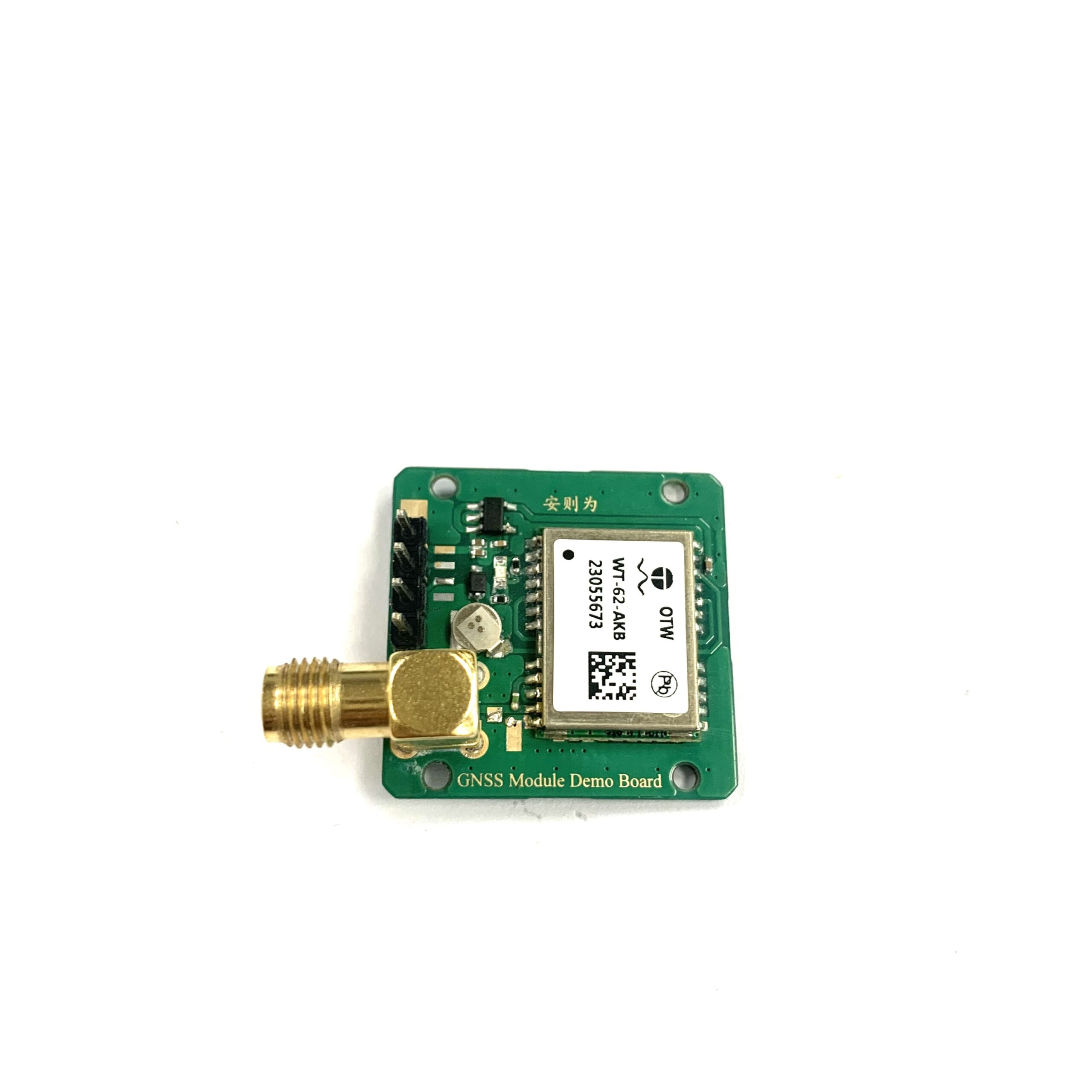

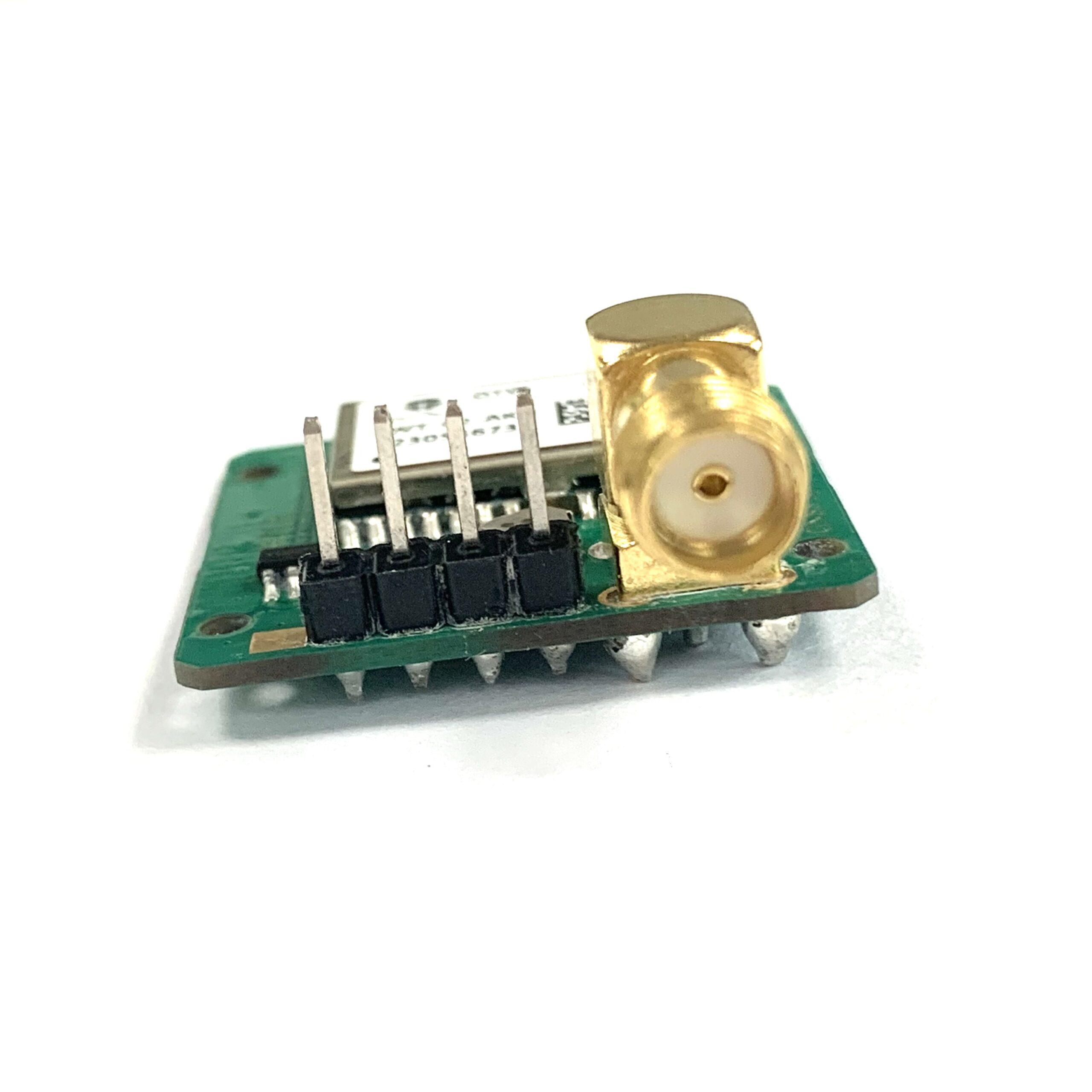

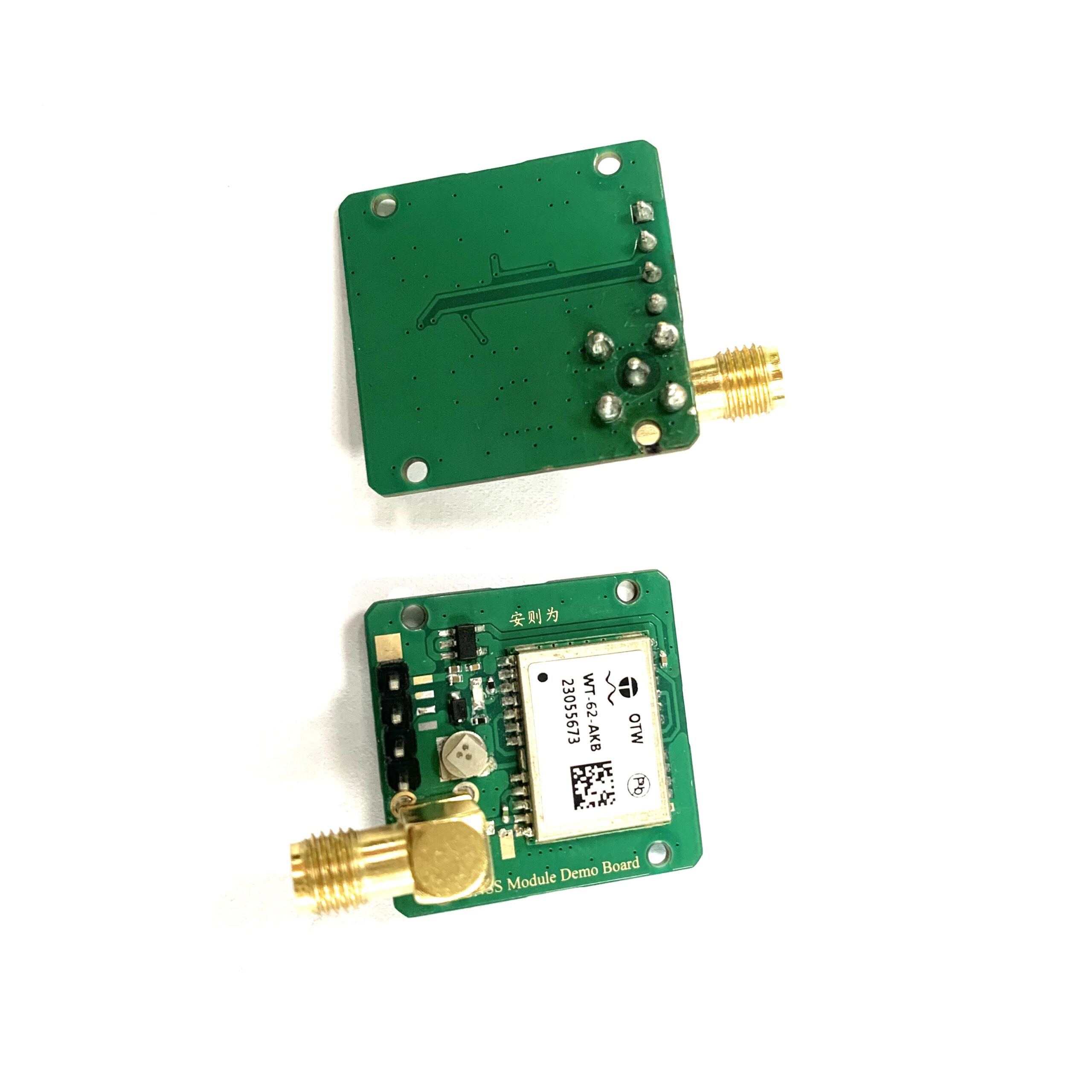

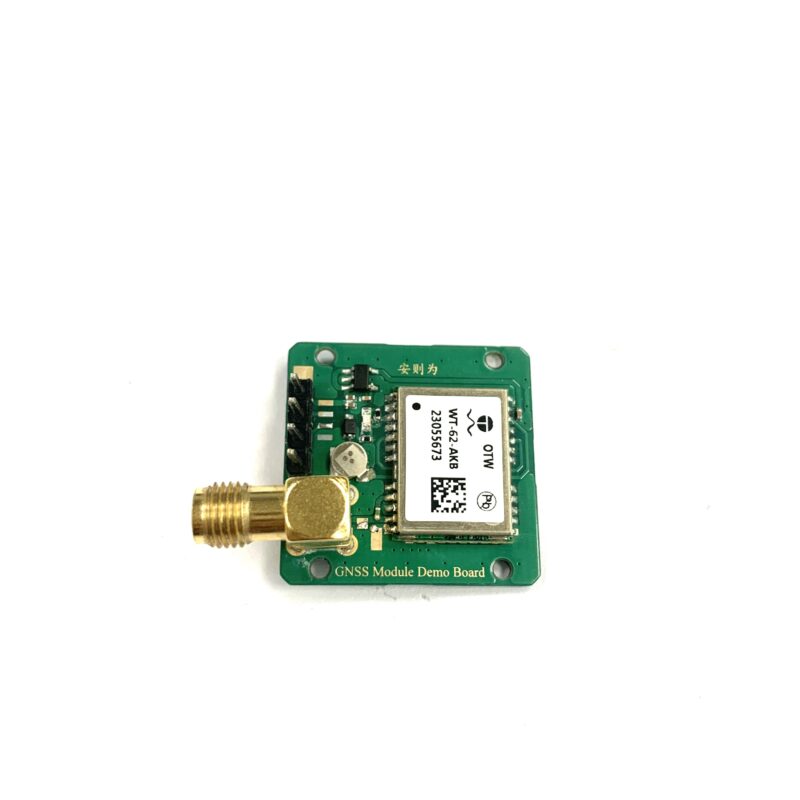

GNSS Development Board

WT-2526-AKB

Application:

Vehicle navigation and monitoring: Real-time positioning and route optimization for taxis, logistics vehicles,and buses
Ship navigation and port management: Navigation for maritime vessels,Channel monitoring,fishing boat positioning
Aviation sector: Take-off and landing navigation for aircraft, route monitoring
Shared bikes： High-precision positioning management,regulation of parking areas

Product features：

Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Earthquake/GeologicalHazard Monitoring: Real-time Monitoringof Surface Displacement
Excellent positioning accuracy in urban canyons
With security and integrity protection
Supports all satellite augmentation systems

Product performance
Model	WT-2526-AKB
Satellite system	BDS:B1I+B1C
protocol	NMEA-0183 or Custom
Agreement	NMEA-0183
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	50,Beidou system independent positioning
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dBm
Cold start	Average 29 seconds
Warm start	Average 3 seconds
Hot start	Average 1 seconds
Accuracy	Horizontal position accuracy <1M (better than 0.5m in open environment) SBAS<0.5M
Max Height	50000 m
Max Speed	500 m/s
Max Acceleration	≤ 4G
Regeneration	default 115200bps
Positioning method	A-GNSS
Port	UART/I2C/USB/SPI
Type	24PIN LCC package
Size	16mm * 12.2mm * 2.4mm (+/- 0.5mm)
Operating voltage	1.65V~3.6V
Power Consume	Operating mode: 21 mA @ 3.0 V; Power-saving mode: 5.3 mA @ 3.0 V (PSM, 1 Hz)
Humidity range	5% to 95% non-condensing
Working Temperature	-40°C to 85°C
Storage Temperature	-40°C to 105°C

Get Free Quote

Description

Product performance
Model	WT-2526-AKB
Satellite system	BDS:B1I+B1C
protocol	NMEA-0183 or Custom
Agreement	NMEA-0183
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	50,Beidou system independent positioning
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dBm
Cold start	Average 29 seconds
Warm start	Average 3 seconds
Hot start	Average 1 seconds
Accuracy	Horizontal position accuracy <1M (better than 0.5m in open environment) SBAS<0.5M
Max Height	50000 m
Max Speed	500 m/s
Max Acceleration	≤ 4G
Regeneration	default 115200bps
Positioning method	A-GNSS
Port	UART/I2C/USB/SPI
Type	24PIN LCC package
Size	16mm * 12.2mm * 2.4mm (+/- 0.5mm)
Operating voltage	1.65V~3.6V
Power Consume	Operating mode: 21 mA @ 3.0 V; Power-saving mode: 5.3 mA @ 3.0 V (PSM, 1 Hz)
Humidity range	5% to 95% non-condensing
Working Temperature	-40°C to 85°C
Storage Temperature	-40°C to 105°C
