How It Works — Four Steps
- Outdoor Signal Reception — An outdoor antenna captures real-time signals from GPS, กลอส, BeiDou and Galileo across 1170–1280 MHz and 1560–1620 MHz.

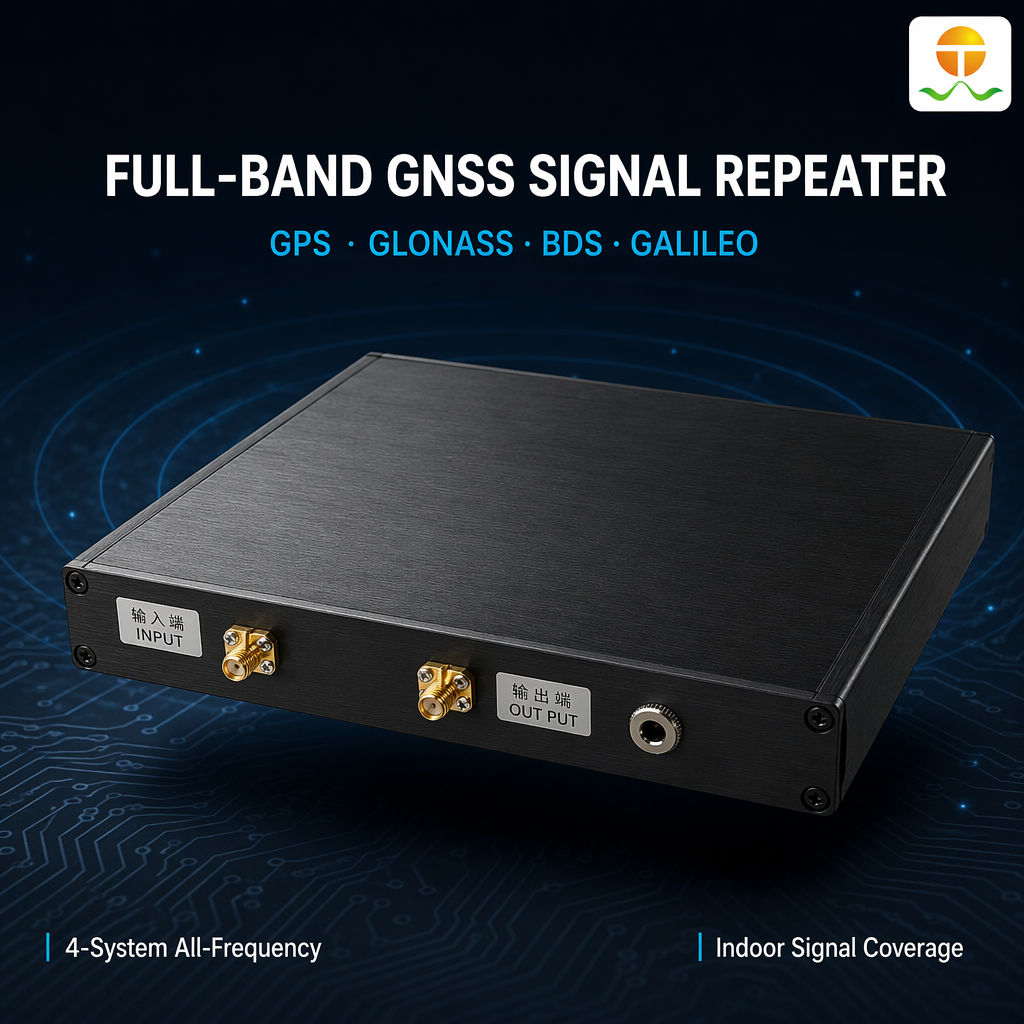

- การขยายสัญญาณ & Forwarding — Signals travel through low-loss RF cable to the repeater host, which delivers high-gain, low-noise amplification powered by AC 220 V.
- Indoor Signal Broadcasting — An indoor antenna rebroadcasts the amplified signal, covering a full room, lab or hangar area.
- Multi-Device Testing — Unlimited receivers can lock on simultaneously, with no limit on the number of devices under test.
| ประสิทธิภาพของผลิตภัณฑ์ | |
|---|---|
| RANGE OF RECEIVING FREQUENCY(เมกะเฮิรตซ์) | จีพีเอส: L1 1575.42MHZ L2 1227.60HMZ L5 1176MHZ BDS: B1 1561.098MHZ B2 1207.14MHZ B3 1268.52MHZ กลอส: G1 1602MHZ G2 1246MHZ |
| กาลิเลโอ: E1 1609MHZ E2 1561MHZ E5A 1192MHZ E5B 1278MHZ |
|
| POLARIZATION | RHCPPS |
| NOISE FIGURE (DB) | ≤2.0 |
| OUTPUT VSWR | ≤2.0 |
| OUTPUT IMPEDENCE (โอห์ม|） | 50 |
| THRUST | 50N~100N |
| GAIM (DBI) | 45±5 DBI |
| OPERATING TEMPERATURE(℃） | -40~70 |
| CONNECTOR TYPE | N-K |
