Product features:
- Simultaneous reception of GPS/QZSS, GLONASS, Beidou, Galileo
- Market-leading acquisition and tracking sensitivityOptimize accuracy and availability
- through measurement and single satellite timing
- Minimize power consumption through low duty cycle operation
- Maximize reliability with integrity monitoring and alerts
- Backward compatibility with LEA-5T, LEA-6T and NEO-6T

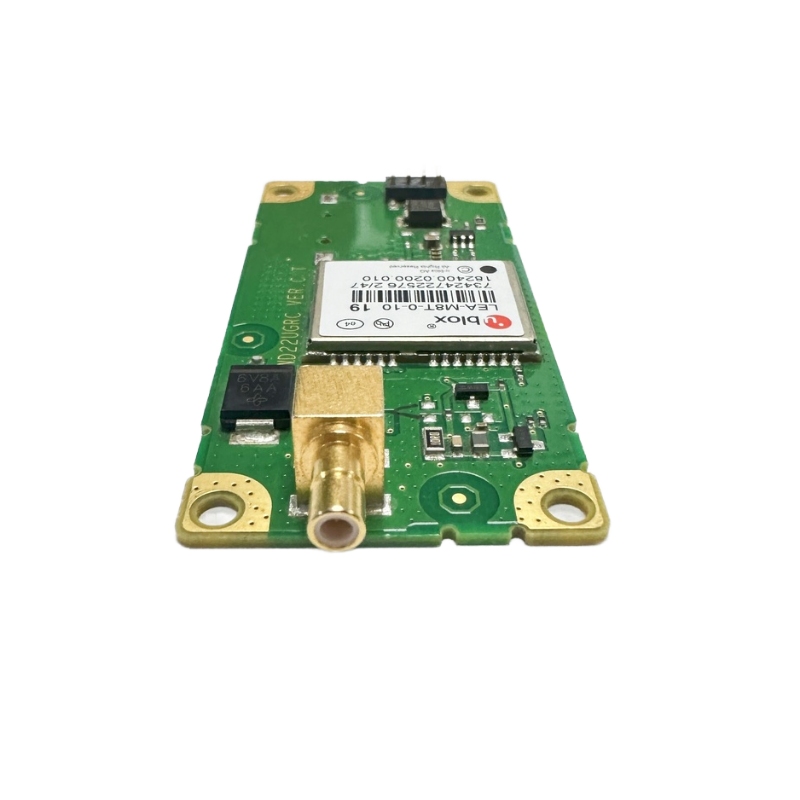

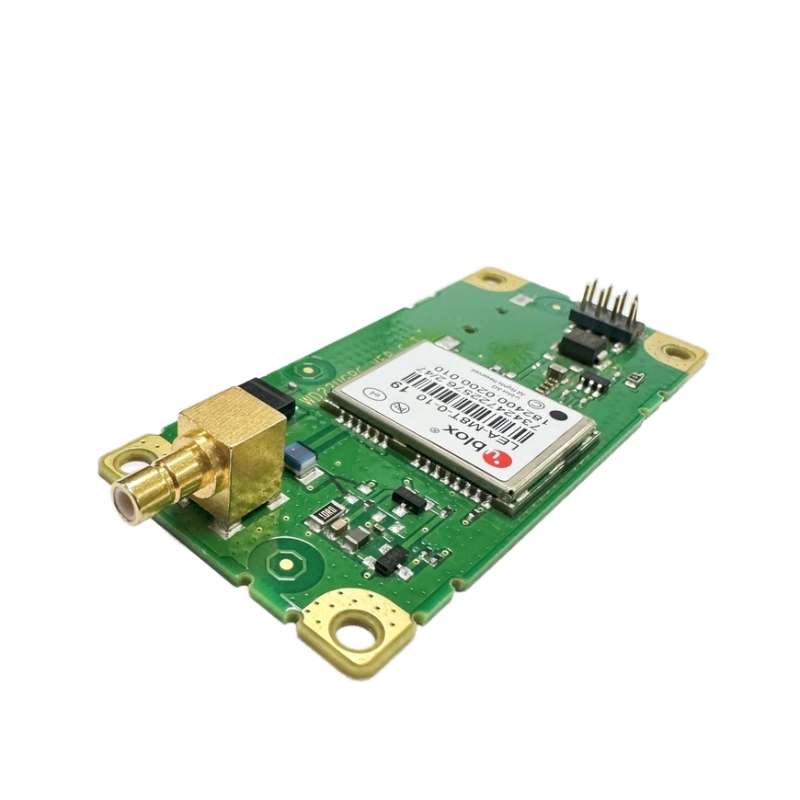

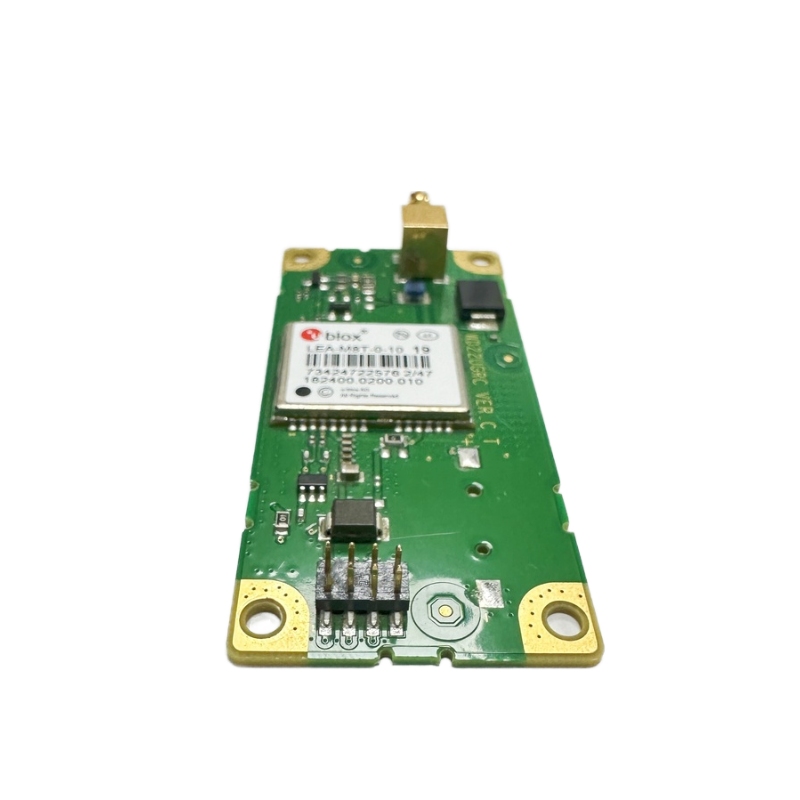

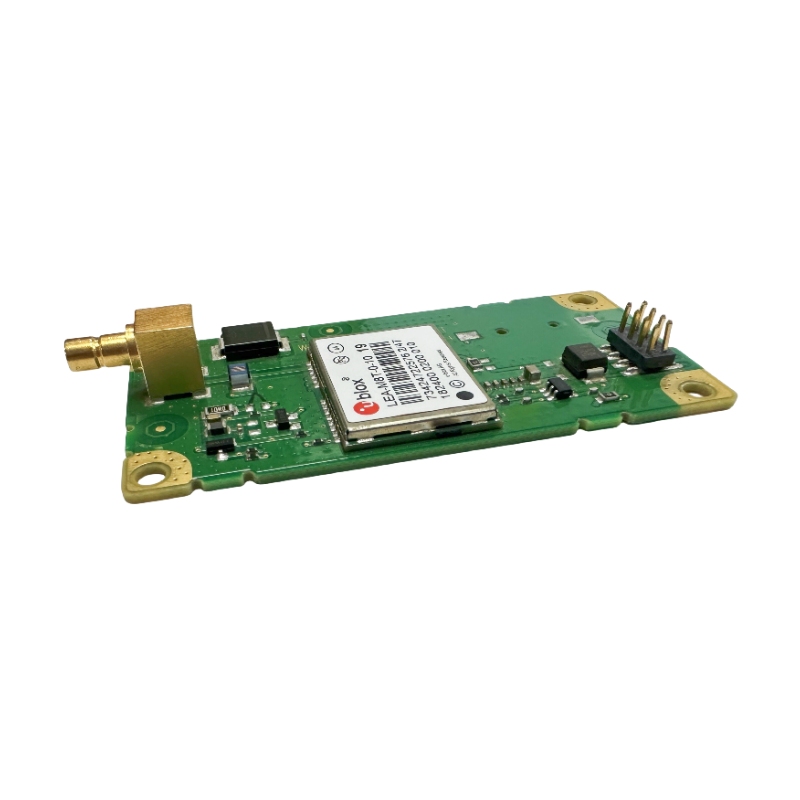

LEA-M8T GNSS Development Board: The core engine for high-precision timing & positioning. Ideal for smart agriculture, financial sync systems, and differential base stations. Explore now to power your project!
Product Specifications
| Module Performance | |
|---|---|
| Model | LEA-M8T-0-10 |
| Frequency | GPS/QZSS L1 GLONASS L1 BeiDou B1 Galileo E1 / SBAS L1 |
| Algorithm | |
| Protocol | NMEA-0183 or Custom |
| Baud Rate | 4800bps ~ 921600bps (Default: 9600bps) |
| Channels | 72 |
| Sensitivity | Tracking & Navigation: –167 dBm / –166 dBm Cold Start: –157 dBm Autonomous: –148 dBm Re-acquisition: –160 dBm |
| Cold Start | Average 25 seconds |
| Hot Start | Average 2 seconds |
| Horizontal Accuracy | 2.5m |
| Timepulse Signal | RMS 20 ns |
| Max Altitude | 18,000 meters |
| Max Velocity | 515 m/s |
| Max Acceleration | ≤ 4G |
| Update Rate | 1-4Hz |
| Positioning Mode | A-GNSS |
| Interfaces | UART, USB, DDC, SPI |
| Physical Characteristics | |
| Module Type | 28PIN LCC package |
| Dimensions | 31.7mm x 67.1mm x 9.7mm (+/-0.5mm) |
| Power Supply | 3.3V ~ 5V |
| Power Consumption | 100 mA |
| Operating Environment | |
| Humidity Range | 5% to 95% non-condensing |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
